Description

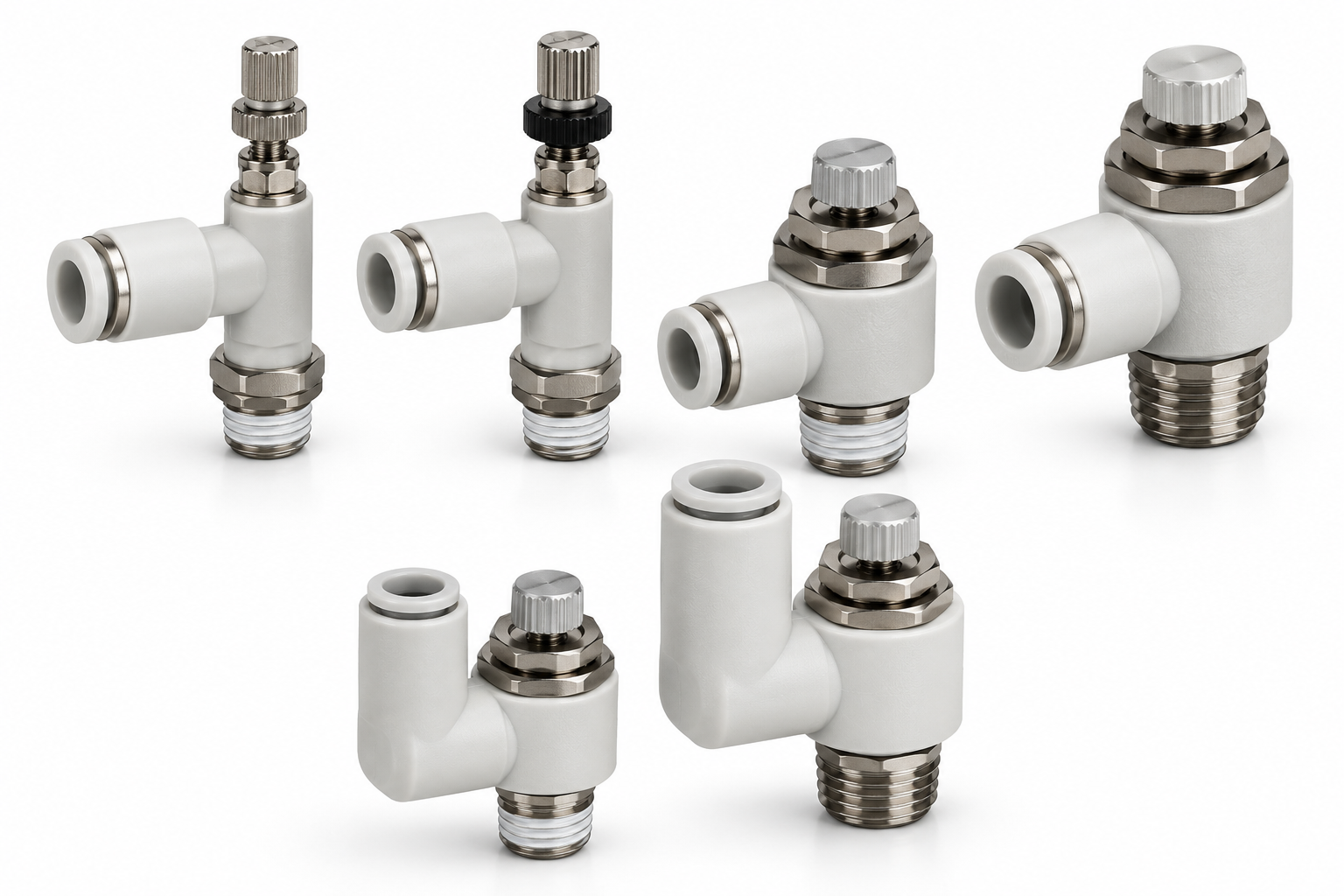

SMC AS1211F-M5-04 — AS series speed controller, elbow type with a one-touch fitting. Meter-out flow control with a scale window, so the setting is read as a number instead of counting turns.
Specification — AS1211F-M5-04
| Type |
Speed controller, elbow |
| Thread |
M5 x 0.8 |
| Tube O.D. |
ø4 mm |
| Control |
Meter-out |
| Adjustment |
Push-lock handle with flow scale window |
| Surface treatment |
Electroless nickel plated (standard) |
| Product weight |
7 g |
Features
- Scale window shows the flow setting as a value, which cuts setup time and removes the guesswork that causes setting mistakes
- Enlarged push-lock handle — set it, push to lock, and the setting holds against vibration
- Improved flow rate reproducibility, so the same reading gives the same cylinder speed
- Easier tube insertion and removal
- Electroless nickel plating is standard, not an option
Why the scale matters
On a machine with twenty cylinders, a controller without a scale has to be re-tuned by eye every time a unit is replaced. With a numbered window the setting is recorded once and restored in seconds, and the same value can be applied across identical stations.
Ordering
Order by the full code AS1211F-M5-04. Within the AS range the prefix gives the body and adjustment style, and the rest gives the thread and tube O.D., so one character changes the part. Need another thread or tube size, or the in-line and universal styles? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
