Description

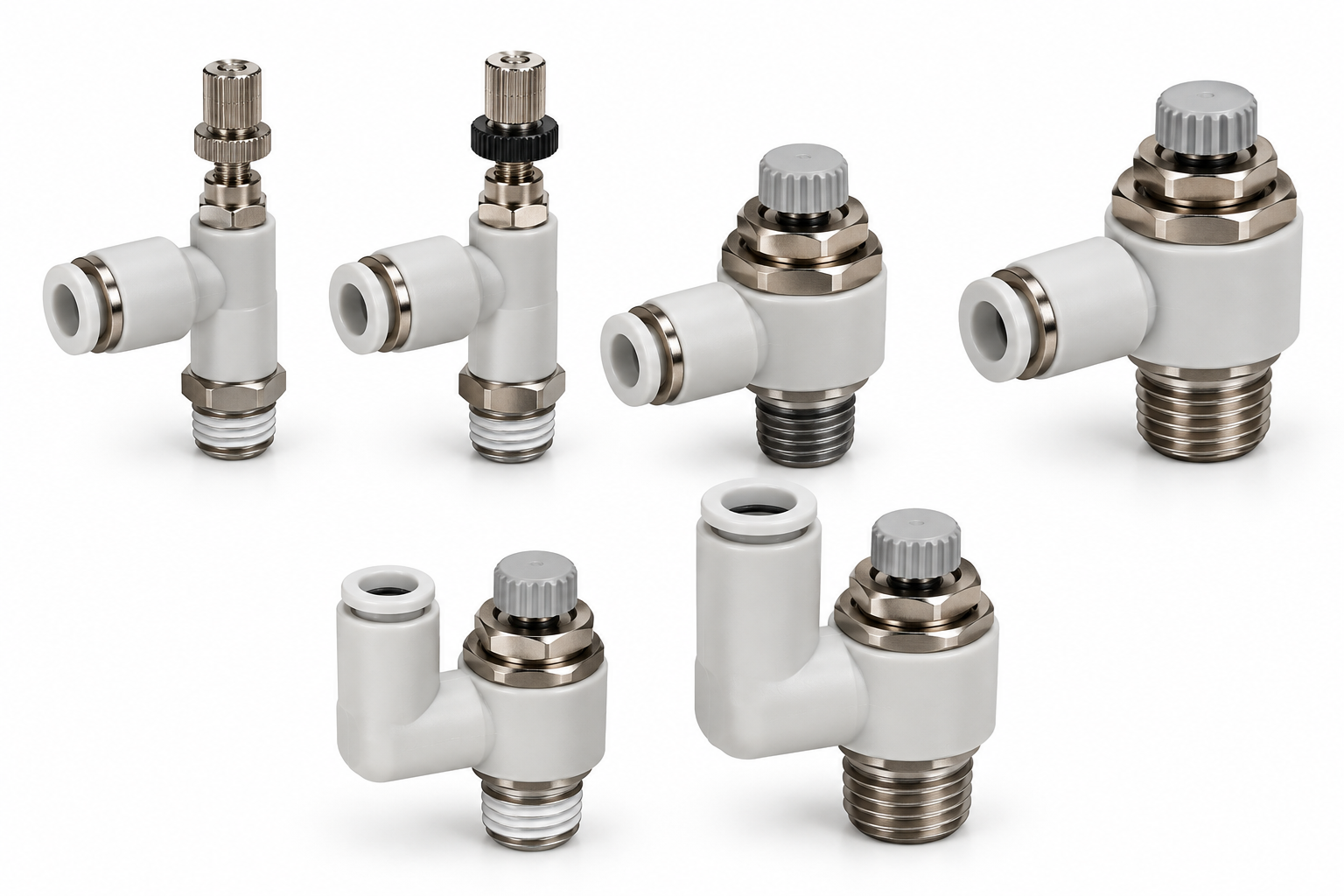

SMC AS1301F-M3-04 — AS series speed controller, universal type with a one-touch fitting. Meter-out flow control with a scale window, so the setting is read as a number instead of counting turns. The M3 thread suits the small ports on miniature cylinders and compact valves.
Specification — AS1301F-M3-04
| Type |
Speed controller, universal (swivel body) |
| Thread |
M3 x 0.5 |
| Tube O.D. |
ø4 mm |
| Control |
Meter-out |
| Adjustment |
Push-lock handle with flow scale window |
| Surface treatment |
Electroless nickel plated (standard) |
| Product weight |
5 g |
Features
- Scale window shows the flow setting as a value, which cuts setup time and removes the guesswork that causes setting mistakes
- Enlarged push-lock handle — set it, push to lock, and the setting holds against vibration
- Improved flow rate reproducibility, so the same reading gives the same cylinder speed
- Easier tube insertion and removal
- Electroless nickel plating is standard, not an option
AS1201F or AS1301F
Both share the same thread, tube size and adjustment mechanism. The 12 body is a fixed elbow; the 13 body swivels, so the tube direction can be set after the fitting is tightened. On crowded machines the swivel body saves rework at assembly.
Ordering
Order by the full code AS1301F-M3-04. The thread is part of the code — M3 and M5 bodies are not interchangeable — and the last digits give the tube O.D. Need another thread or tube size, or the in-line style in the same range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
