Description

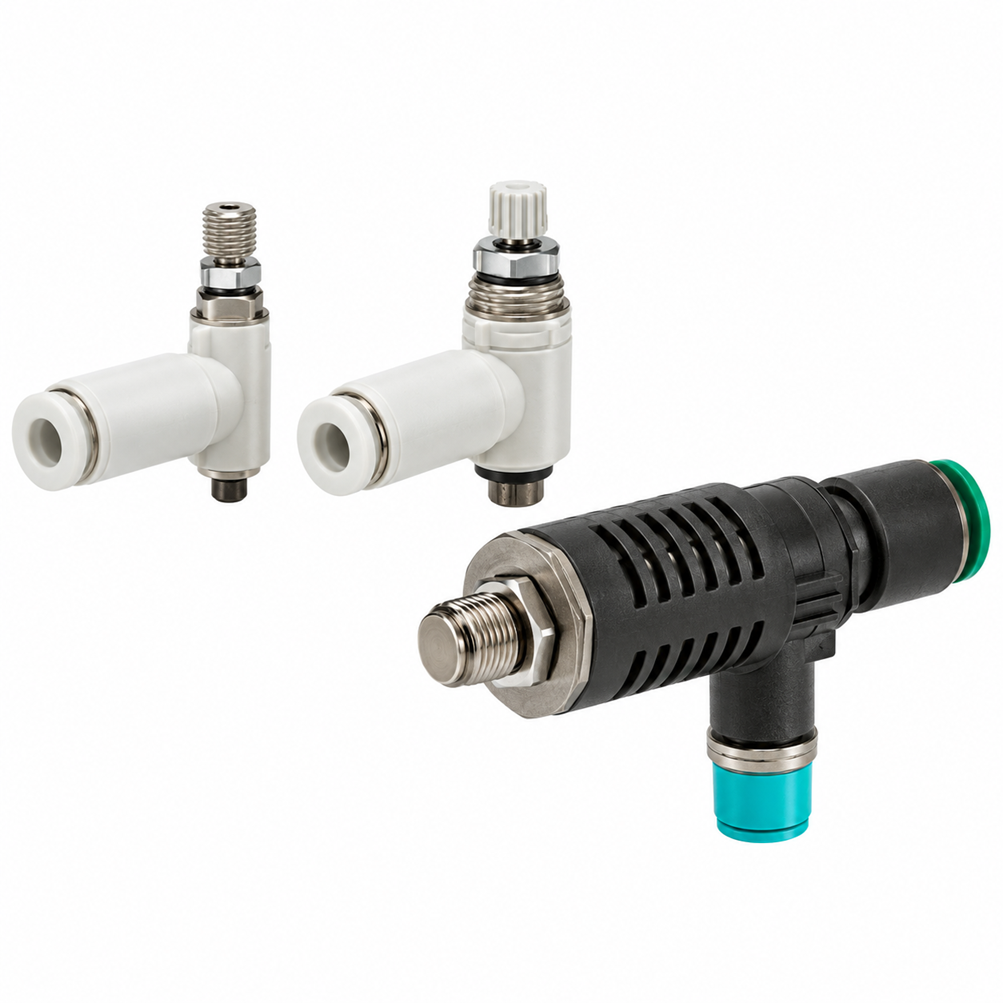

SMC ASV410F-01-08S — ASV series quick exhaust controller. A quick exhaust valve and a metering orifice built into one body, so the cylinder dumps its air locally instead of pushing it back through the solenoid valve.
Specification — ASV410F-01-08S
| Series |
ASV (quick exhaust controller) |
| Body size |
410 |
| Thread |
R 1/8 |
| Tube O.D. |
ø8 mm |
| Function |
Quick exhaust valve + exhaust metering in one body |
| Product weight |
39 g |
What it does
Normally the exhaust air from a cylinder travels back down the tube to the valve before it reaches atmosphere, and that return path limits how fast the cylinder can move. A quick exhaust controller vents at the cylinder port instead, and the built-in orifice still lets the speed be set. Fitting one is usually cheaper than moving to a larger valve and bigger tube.
Typical use
High-speed cylinders, ejectors, blow-off and any axis where the cycle time is limited by exhaust rather than supply.
Ordering
Order by the full code ASV410F-01-08S. The thread and tube size are both in the code, and the same body is offered in other combinations. Need another thread or tube size in the ASV range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
