Name: SMC C85 Series ISO air cylinder, Double acting, single rod, C85E16-100
Brand: SMC
SKU: C85E16-100
Price: 26.42 USD
Availability: InStock

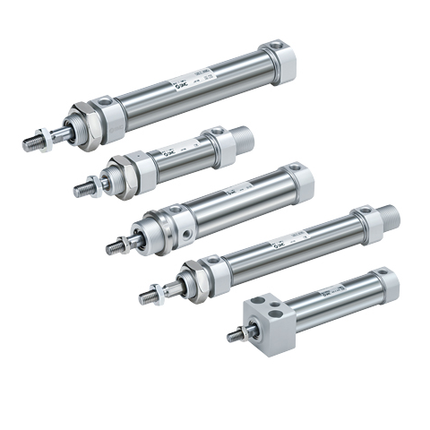

SMC C85 Series ISO air cylinder, Double acting, single rod, C85E16-100

VendorSMC

Description

OVERVIEW

The C85 series conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 25mm with standard strokes ranging from 10mm through 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packings and replaceable nose seals, the C85 offers exceptional service life.

Standard No.: ISO 6432 (C85)
Set the part number for the mounting bracket, rod end bracket, and auto switch attachment . Eliminates the trouble of ordering cylinders and fittings separately, contributing to reduction of man-hours.
Easy fine adjustment of auto switch position
Improved visibility of indicator lamp by making switch bracket transparent
Attach auto switch
C85 series：CD85、CD85W、CD85K、CD85R
C75 series: CD75、CD75W、CD75K、CD7

Specification item	model symbol	Specification information
built-in magnet	-	no magnet
Head cover type	E	Both sides boss cut
tube inner diameter	12	tube inner diameter 12mm
cylinder stroke	100	cylinder stroke 100mm
cushion	-	Rubber cushion (standard)
bellows	-	no bellows
mounting bracket	-	No mounting bracket
part	-	no accessories
Auto switch mounting type	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — C85E16-100

Bore	16mm
Stroke	100mm
Auto switch	Without auto switch
Fluid	Air
Port thread	M
Rod end male thread	M6X1
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-20 ℃
Ambient temp. max	80 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	1500 mm/s
Allowable kinetic energy	0.09 J
Weight	144 g

Specification values above are for model code C85E16-100 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
