Description

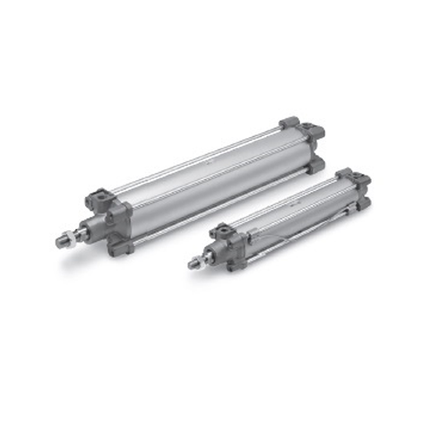

SMC C96SB50-80C — C96 Series ISO air cylinder, double acting, single rod. This code specifies 50mm bore, 80mm stroke, without auto switch.
Specification — C96SB50-80C
| Mounting |
Basic |
| Bore |
50mm |
| Stroke |
80mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
G |
| Rod end male thread |
M16X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-20 ℃ |
| Ambient temp. max |
70 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
1000 mm/s |
| Rod diameter |
20 mm |
| Weight |
1,570 g |
Specification values above are for model code C96SB50-80C as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC C96 series
- Light weight: reduced by up to 17%
- Reduction of tact time by new cushion method (air cushion + damper cushion)
- Reduced metal noise when piston is stopped by damper cushion
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
