Description

OVERVIEW

Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
tube inner diameter	63	Bore size 63mm
cylinder stroke	300
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6... Read more

SKU: C96SDB63-300C

$175.66 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 27, 2024 17:00:00 +0900

Description

OVERVIEW

Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
tube inner diameter	63	Bore size 63mm
cylinder stroke	300
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

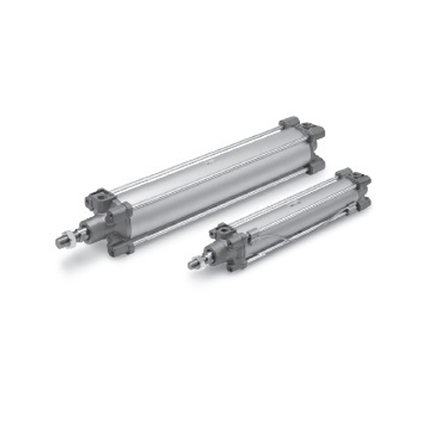

Name: SMC C96 Series ISO air cylinder, double acting, single rod, C96SDB63-300C
Brand: SMC
SKU: C96SDB63-300C
Price: 175.66 USD

SMC C96 Series ISO air cylinder, double acting, single rod, C96SDB63-300C
