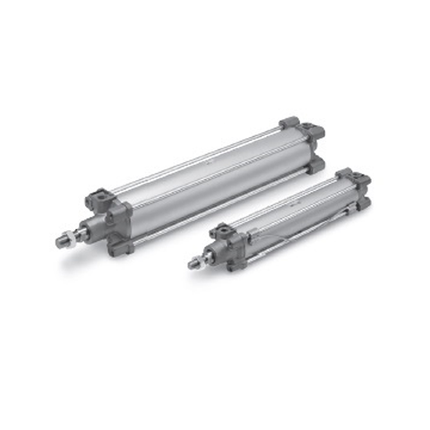

SMC C96 Series ISO air cylinder, double acting, single rod, C96SL63-450C

Description

OVERVIEW

Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.


  • Light weight: reduced by up to 17%
  • Reduction of tact time by new cushion method (air cushion + damper cushion)
  • Reduced metal noise when piston is stopped by damper cushion



Specification item model symbol Specification information
With auto switch - Without auto switch
installation support L Axial foot type
tube inner diameter 63 Bore size 63mm
cylinder stroke 450
with bellows - no bellows
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
With bellows 2 - no bellows
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6... Read more

SKU: C96SL63-450C

$166.05 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW

    Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.


    • Light weight: reduced by up to 17%
    • Reduction of tact time by new cushion method (air cushion + damper cushion)
    • Reduced metal noise when piston is stopped by damper cushion



    Specification item model symbol Specification information
    With auto switch - Without auto switch
    installation support L Axial foot type
    tube inner diameter 63 Bore size 63mm
    cylinder stroke 450
    with bellows - no bellows
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    With bellows 2 - no bellows
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
