Description

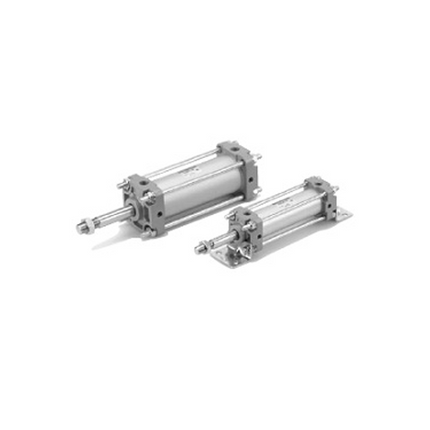

SMC CDA2KB50-100 — CA2K Series Tie-Rod Cylinder, Non-rotating, Double Acting, Single Rod. This code specifies 50mm bore, 100mm stroke, double acting, without auto switch.
Specification — CDA2KB50-100
| Bore |
50mm |
| Port thread |
Rc |
| Stroke |
100mm |
| Auto switch |
Without auto switch |
| Port size |
3/8 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M18X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Weight |
1,820 g |
Specification values above are for model code CDA2KB50-100 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CA2K series
- 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
- With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2Q, CDBA2, CDA2H, CDA2W H)
- Production of the CA2 series was discontinued in September 2013. (Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2H/CA2WH) Select the CA2-Z series.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
