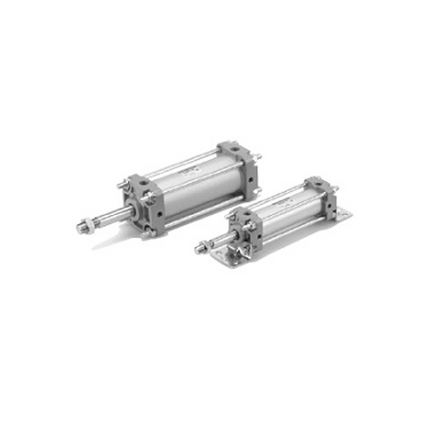

SMC CA2K Series Tie-Rod Cylinder, Non-rotating, Double Acting, Single Rod, CDA2KB50-200

Description

OVERVIEW


  • 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
  • With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
  • ※Production of the CA2 series was discontinued in September 2013.
     (Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
     Select the CA2-Z series.



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type
tube inner diameter 50 tube inner diameter 50mm
Types of port screws - Rc
cylinder stroke 200 cylinder stroke 200mm
Cylinder additional symbol - No bellows, air cushion
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, air cushion
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type. With auto... Read more

SKU: CDA2KB50-200

$141.38 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Jul 22, 2024 17:00:00 +0900

    Description

    OVERVIEW


    • 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
    • With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
    • ※Production of the CA2 series was discontinued in September 2013.
       (Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
       Select the CA2-Z series.



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type B Basic type
    tube inner diameter 50 tube inner diameter 50mm
    Types of port screws - Rc
    cylinder stroke 200 cylinder stroke 200mm
    Cylinder additional symbol - No bellows, air cushion
    Stroke adjustment symbol - doesn't exist
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Cylinder additional symbol 2 - No bellows, air cushion
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
