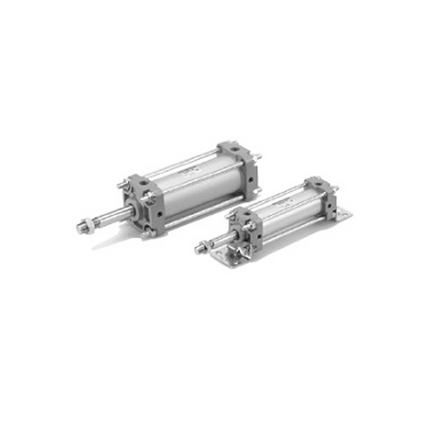

SMC CA2K Series Tie-Rod Cylinder, Non-rotating, Double Acting, Single Rod, CDA2KB50-50

Description

OVERVIEW


  • 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
  • With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
  • ※Production of the CA2 series was discontinued in September 2013.
    　(Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
    　Select the CA2-Z series.



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type
tube inner diameter 50 tube inner diameter 50mm
Types of port screws - Rc
cylinder stroke 50 cylinder stroke 50mm
Cylinder additional symbol - No bellows, air cushion
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, air cushion
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Specification — CDA2KB50-50

Bore 50mm
Port thread Rc
Stroke 50mm
Auto switch Without auto switch
Port size 3/8
Fluid Air
Action Double acting
Rod end male thread M18X1.5
Min. operating pressure 0.05 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Fluid temp. min -10 ℃
Fluid temp. max 60 ℃
Ambient temp. min -10 ℃
Ambient temp. max 60 ℃
Lubrication Non-lube
Weight 1,570 g

Specification values above are for model code CDA2KB50-50 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type. With auto... Read more

SKU: CDA2KB50-50

$92.39 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
    • With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
    • ※Production of the CA2 series was discontinued in September 2013.
      　(Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
      　Select the CA2-Z series.



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type B Basic type
    tube inner diameter 50 tube inner diameter 50mm
    Types of port screws - Rc
    cylinder stroke 50 cylinder stroke 50mm
    Cylinder additional symbol - No bellows, air cushion
    Stroke adjustment symbol - doesn't exist
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Cylinder additional symbol 2 - No bellows, air cushion
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard

    Specification — CDA2KB50-50

    Bore 50mm
    Port thread Rc
    Stroke 50mm
    Auto switch Without auto switch
    Port size 3/8
    Fluid Air
    Action Double acting
    Rod end male thread M18X1.5
    Min. operating pressure 0.05 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Fluid temp. min -10 ℃
    Fluid temp. max 60 ℃
    Ambient temp. min -10 ℃
    Ambient temp. max 60 ℃
    Lubrication Non-lube
    Weight 1,570 g

    Specification values above are for model code CDA2KB50-50 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
