Description

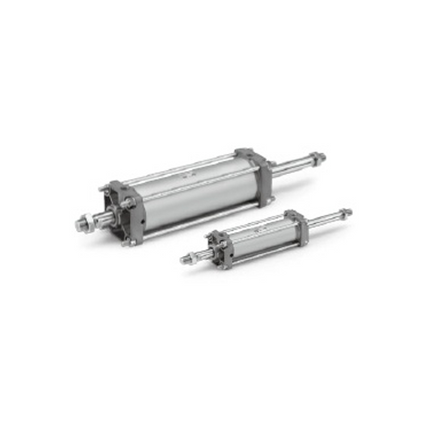

SMC CDA2WB80-50Z — CA2W-Z Series Air Cylinder, Double Acting, Double Rod. This code specifies 80mm bore, 50mm stroke, double acting, without auto switch.
Specification — CDA2WB80-50Z
| Mounting |
Basic |
| Bore |
80mm |
| Port thread |
Rc |
| Stroke |
50mm |
| Auto switch |
Without auto switch |
| Port size |
1/2 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M22X1.5 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
4,000 g |
Specification values above are for model code CDA2WB80-50Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CA2W-Z series
- Mass reduction by up to 15%
- Easy air cushion control
- Mountable from small auto switches to magnetic field resistant auto switches
- Set the rod end bracket and oscillation bracket attachment part number (reducing the trouble of ordering separately)
- Attach auto switch (CDA2) Series: CDA2, CDA2W)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
