Description

OVERVIEW

15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
※Production of the CA2 series was discontinued in September 2013.
　(Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
　Select the CA2-Z series.

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube material	-	aluminum tube
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc
Cylinder with improved water resistance	-	standard
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	-	No bellows, with air cushions on both sides
Stroke adjustment symbol	-	doesn't exist
Lock position	R	Rod side lock
Format of manual release	N	Non-lock type
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, with air cushions on both sides
Lock position 2	-	doesn't exist
Manual release format 2	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW 15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type. With auto... Read more

SKU: CBA2B50-100-RN

$130.26 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

15% reduction in mass compared to the CA1 series for the standard square cover and tie rod type.
With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDA2□Q, CDBA2, CDA2□H, CDA2W□ H)
※Production of the CA2 series was discontinued in September 2013.
　(Excluding non-rotating rod type CA2K/CA2KW, end lock type CBA2, and air-hydro cylinder CA2□H/CA2W□H)
　Select the CA2-Z series.

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube material	-	aluminum tube
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc
Cylinder with improved water resistance	-	standard
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	-	No bellows, with air cushions on both sides
Stroke adjustment symbol	-	doesn't exist
Lock position	R	Rod side lock
Format of manual release	N	Non-lock type
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, with air cushions on both sides
Lock position 2	-	doesn't exist
Manual release format 2	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

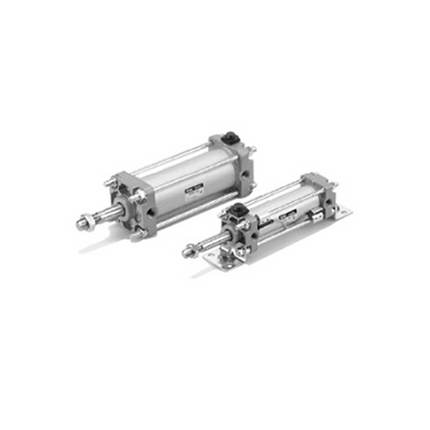

Name: SMC CBA2 Series Tie-Rod Cylinder, End-Lock Cylinder, CBA2B50-100-RN
