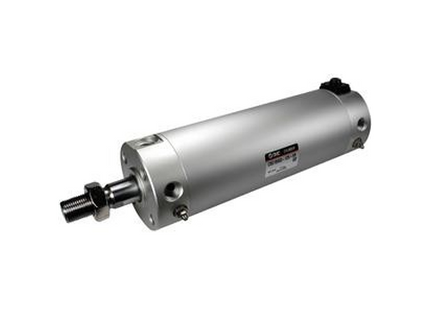

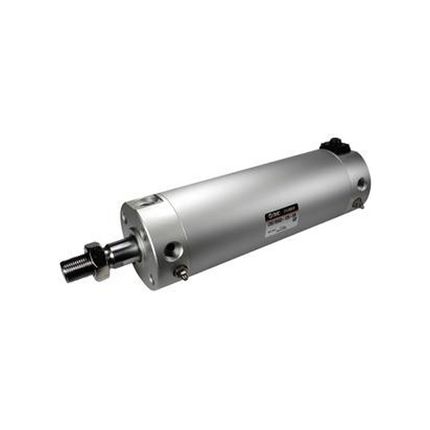

SMC CBG1 Series End-Lock Cylinder, Round Body, CDBG1BN40-125-HN

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Set trunnion mounting tab-less shape to basic type
  • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
  • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Basic type
form N rubber cushion
tube inner diameter 40 tube inner diameter 40mm
cylinder stroke 125 Cylinder stroke 125mm
Cylinder additional symbol - no bellows
Lock position H Head side lock
Format of manual release N Non-lock type
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting bracket - doesn't exist
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDBG1BN40-125-HN

$77.24 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Standardized rod end shape female thread
    • Improved auto switch operability, easy position adjustment
    • Set trunnion mounting tab-less shape to basic type
    • Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
    • Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support B Basic type
    form N rubber cushion
    tube inner diameter 40 tube inner diameter 40mm
    cylinder stroke 125 Cylinder stroke 125mm
    Cylinder additional symbol - no bellows
    Lock position H Head side lock
    Format of manual release N Non-lock type
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Auto switch mounting bracket - doesn't exist
    Custom made specifications - standard
