Description

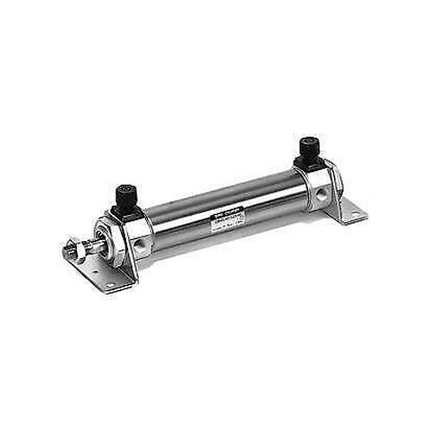

SMC CDBM2B20-200-RN — CBM2 Series End-Lock Cylinder Cylinder, round body. This code specifies 20mm bore, 200mm stroke, double acting, without auto switch.
Specification — CDBM2B20-200-RN
| Bore |
20mm |
| Stroke |
200mm |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting |
| Port thread |
Rc |
| Rod end male thread |
M8X1.25 |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
750 mm/s |
| Weight |
313 g |
Specification values above are for model code CDBM2B20-200-RN as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CBM2 series
- Using tubes that are compact, lightweight, and resistant to external shocks
- 1.5 times longer life than conventional CM series . , CDBM2)
- Production of the CM2 series was discontinued in September 2013. (Excluding non-rotating rod type/single acting CM2K, centralized piping type CM2P, end lock type CBM2) Select the CM2-Z series.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
