Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	ø32-ø100 through hole (standard); ø20, ø25 through hole and both ends tapped (standard)
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc/M screw
cylinder stroke	30
body options	CM	With rubber cushion, rod end male thread
Lock position	R	Rod side lock
Format of manual release	N	Non-lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CDBQ2B50-30DCM-RN

$105.51 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	ø32-ø100 through hole (standard); ø20, ø25 through hole and both ends tapped (standard)
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc/M screw
cylinder stroke	30
body options	CM	With rubber cushion, rod end male thread
Lock position	R	Rod side lock
Format of manual release	N	Non-lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

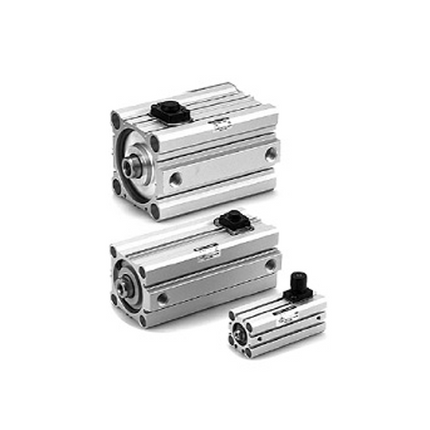

Name: SMC CBQ2 Series Compact End-Lock Cylinder , CDBQ2B50-30DCM-RN
Brand: SMC
SKU: CDBQ2B50-30DCM-RN
Price: 105.51 USD
Availability: InStock

SMC CBQ2 Series Compact End-Lock Cylinder , CDBQ2B50-30DCM-RN
