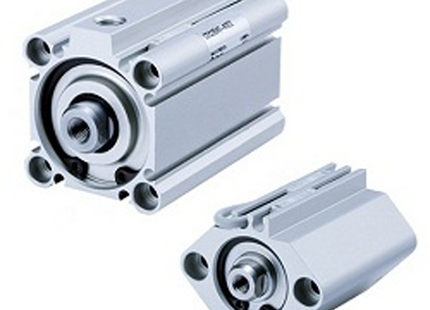

SMC CDQ2A63-35DCMZ Compact Cylinder, CQ2-Z

Description

OVERVIEW



SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable



SPECIFICATIONS


Compact Cylinder Type Standard
Bore Diameter 63 mm
Stroke 35 mm
Piston Action Double-Acting
Mounting Type Both Ends Tapped
Rod Type Single Rod
Rod Size / Thread M18x1.5 Male ISO
Port Size 1/4 BSPT
Cushion Type Rubber Bumper
Options Included Switch Ready, Magnetized
Proof Pressure +1.5 Mpa
Operating Pressure Range +0.05 to +1 Mpa
Push Force at 100 psi 2180 N
Pull Force at 100 psi 1960 N
Operating Temperature Range -10 to +60 °C
Standards Met JIS
Overall Length 117.5 mm
Overall Width 84 mm
Overall Height 77 mm
Cylinder Series CQ2
Maximum Operating Pressure +1 Mpa2
Minimum Operating Pressure +0.05 Mpa
Port Gender Female
Port Thread Standard BSPT
Product form

OVERVIEW   SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches... Read more

SKU: CDQ2A63-35DCMZ

$89.21 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

      • Double acting, single rod, compact cylinder
      • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
      • Standard stroke range *: 5 to 100
      • Port threads: M *; Rc, NPT or G *
      • Auto switch capable



      SPECIFICATIONS


      Compact Cylinder Type Standard
      Bore Diameter 63 mm
      Stroke 35 mm
      Piston Action Double-Acting
      Mounting Type Both Ends Tapped
      Rod Type Single Rod
      Rod Size / Thread M18x1.5 Male ISO
      Port Size 1/4 BSPT
      Cushion Type Rubber Bumper
      Options Included Switch Ready, Magnetized
      Proof Pressure +1.5 Mpa
      Operating Pressure Range +0.05 to +1 Mpa
      Push Force at 100 psi 2180 N
      Pull Force at 100 psi 1960 N
      Operating Temperature Range -10 to +60 °C
      Standards Met JIS
      Overall Length 117.5 mm
      Overall Width 84 mm
      Overall Height 77 mm
      Cylinder Series CQ2
      Maximum Operating Pressure +1 Mpa2
      Minimum Operating Pressure +0.05 Mpa
      Port Gender Female
      Port Thread Standard BSPT
