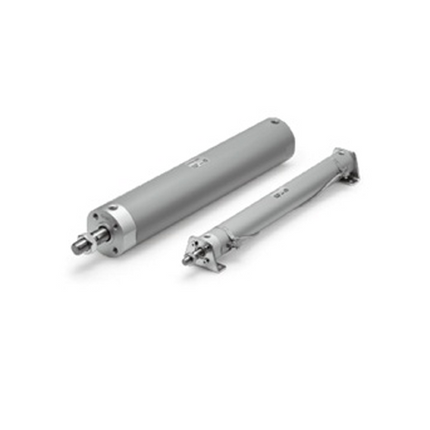

SMC CDG1BA20-75Z — CG1-Z Series Air Cylinder, Round Body, Double Acting, Single Rod. This code specifies 20mm bore, 75mm stroke, double acting, without auto switch.
Specification — CDG1BA20-75Z
| Mounting |
Basic |
| Bore |
20mm |
| Stroke |
75mm |
| Auto switch |
Without auto switch |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M8X1.25 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Weight |
220 g |
Specification values above are for model code CDG1BA20-75Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CG1-Z series
- Standardized rod end shape female thread
- Improved auto switch operability, easy position adjustment
- Set trunnion mounting tab-less shape to basic type
- Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
- Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)
