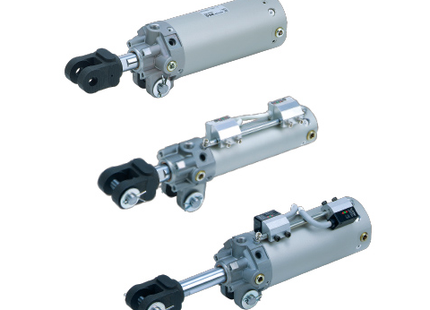

Name: SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CK1A63-50YZ
Brand: SMC
SKU: CK1A63-50YZ
Price: 129.01 USD
Availability: InStock

SMC CK1-Z/CKG1-Z Series Clamp Cylinder, Auto Switch Band, CK1A63-50YZ

VendorSMC

Description

OVERVIEW

The CK1 series is a clamp cylinder available in two styles of clevis widths *. It is a non-lube, compact, lightweight cylinder with a built-in speed controller. Gaiters are unnecessary because a heavy-duty coil scraper is provided as a countermeasure against spatters. The CK1 is available in 3 bore sizes with stroke lengths up to 150mm. Options include rod attachments and auto-switch capabilities.

Reduced overall tube length by 7mm (in case of CKP1□40)
Easy speed adjustment with screw adjustment structure
The speed controller valve does not protrude from the outer tube.
Possible to attach magnetic field resistant auto switch in 3 directions
Compatible with D-P3DW and D-P4DW (CKG1)
Supports D-P79WSE and D-P74L/Z
Supports spatter-resistant cylinders for arc welding (-XC88/-XC89/-XC91) (CKG1 only)

Specification item	model symbol	Specification information
built-in standard magnet	-	no magnet
clevis width	A	16.5mm
tube inner diameter	63	63mm
screw type	-	RC1/4
cylinder stroke	50	cylinder stroke 50mm
tip bracket	Y	Double knuckle joint M6 without tap
option	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CK1A63-50YZ

Bore	63mm
Stroke	50mm
Auto switch	Without auto switch
Fluid	Air
Action	Double acting
Cushion	Air cushion
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Weight	1,000 g

Specification values above are for model code CK1A63-50YZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
