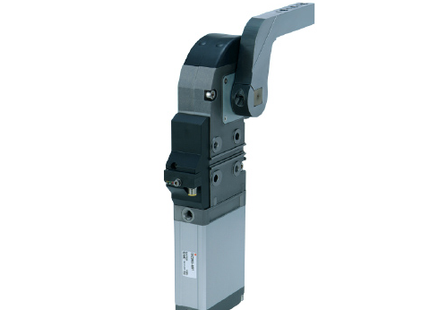

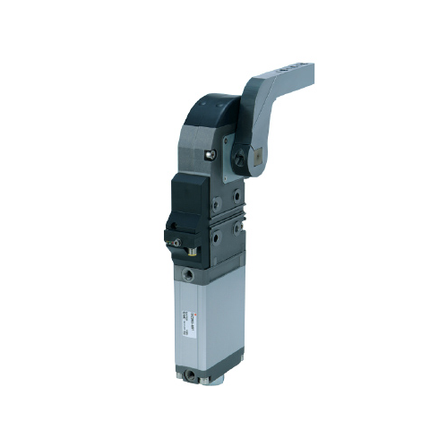

Name: SMC CKZ2N Series Power Clamp Cylinder New NAAMS Compliant Without Arm, CKZ2N50-135LT
Brand: SMC
SKU: CKZ2N50-135LT
Price: 414.38 USD
Availability: InStock

SMC CKZ2N Series Power Clamp Cylinder New NAAMS Compliant Without Arm, CKZ2N50-135LT

VendorSMC

Description

OVERVIEW

SMCs CKZ2N power clamp cylinder conforms to the new NAAMS standard. The rounded cover design and release button with minimal protrusion, reduce weld spatter accumulation. The arm opening angle can be easily changed by replacing the stopper bolt. The CKZ2N is available in sizes equivalent to 50, 63 and 80mm bore with arm opening angles ranging from 15to 135.

Conforms to the new NAAMS (North American automotive metric standard)
138 types of arm configuration
Spatter- and water-resistant structure

Specification item	model symbol	Specification information
tube inner diameter	50	50mm equivalent
cylinder port	-	NPT
Arm opening	135	135°
Arm location	L	left
switch format	T	TURCK

Specification — CKZ2N50-135LT

Fluid	Air
Action	Double acting
Stroke	81.3 mm
Cushion	Rubber bumper
Min. operating pressure	0.3 MPa
Max. operating pressure	0.8 MPa
Proof pressure	1.2 MPa
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Lubrication	Non-lube
Weight	5,060 g

Specification values above are for model code CKZ2N50-135LT as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
