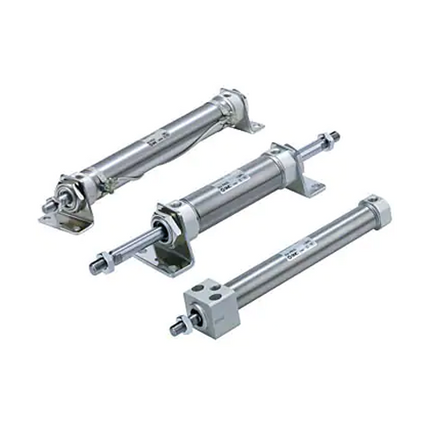

Name: SMC CM2-Z Series Air Cylinder, round body, Double Acting, Single Rod, CDM2BZ20-100AZ
Brand: SMC
SKU: CDM2BZ20-100AZ
Price: 38.96 USD
Availability: InStock

SMC CM2-Z Series Air Cylinder, round body, Double Acting, Single Rod, CDM2BZ20-100AZ

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	BZ	Basic boss cut
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	A	Air cushion, rod end male thread, no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rubber cushion, rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2BZ20-100AZ

Bore	20mm
Port thread	Rc
Stroke	100mm
Auto switch	Without auto switch
Port size	1/8
Fluid	Air
Action	Double acting
Rod end male thread	M8X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Weight	213 g

Specification values above are for model code CDM2BZ20-100AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2BZ20-100AZ

$38.96 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	BZ	Basic boss cut
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	A	Air cushion, rod end male thread, no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rubber cushion, rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2BZ20-100AZ

Bore	20mm
Port thread	Rc
Stroke	100mm
Auto switch	Without auto switch
Port size	1/8
Fluid	Air
Action	Double acting
Rod end male thread	M8X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Weight	213 g

Specification values above are for model code CDM2BZ20-100AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
