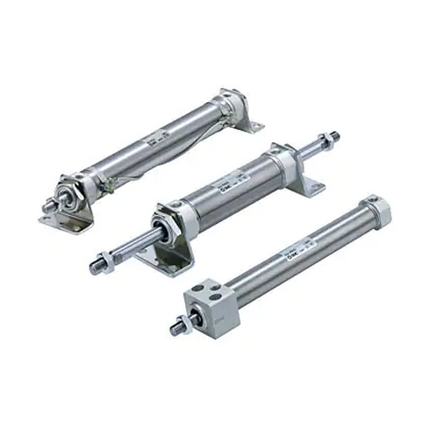

SMC CDM2E20-25AZ — CM2-Z Series Air Cylinder, round body, Double Acting, Single Rod. This code specifies 20mm bore, 25mm stroke, double acting, without auto switch.
Specification — CDM2E20-25AZ
| Bore |
20mm |
| Port thread |
Rc |
| Stroke |
25mm |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M8X1.25 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Weight |
143 g |
Specification values above are for model code CDM2E20-25AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CM2-Z series
- Standardized rod end shape female thread
- Improved auto switch operability, easy position adjustment
- Single clevis, set rocking support bracket for trunnion
- Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
- With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
