Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	B	Front installation type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	50	cylinder stroke 50mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
cushion	-	rubber cushion
Rod end screw shape	-	rod end male thread
rod end bracket	-	no metal fittings
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2RB20-50Z-A93

$100.72 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	B	Front installation type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	50	cylinder stroke 50mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
cushion	-	rubber cushion
Rod end screw shape	-	rod end male thread
rod end bracket	-	no metal fittings
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

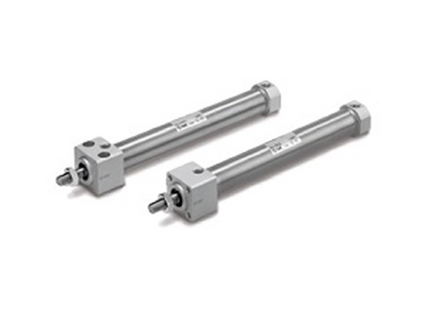

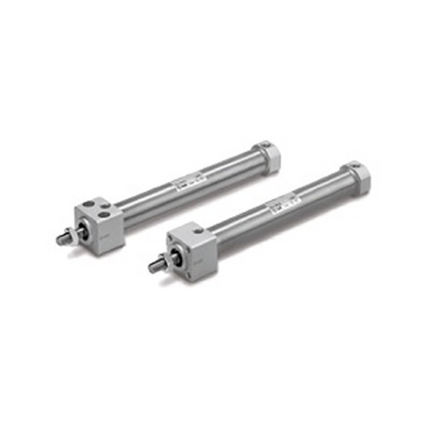

Name: SMC CM2R-Z Series Air Cylinder, round body, Direct Mounting, Double Acting, Single Rod, CDM2RB20-50Z-A93
Brand: SMC
SKU: CDM2RB20-50Z-A93
Price: 100.72 USD

SMC CM2R-Z Series Air Cylinder, round body, Direct Mounting, Double Acting, Single Rod, CDM2RB20-50Z-A93
