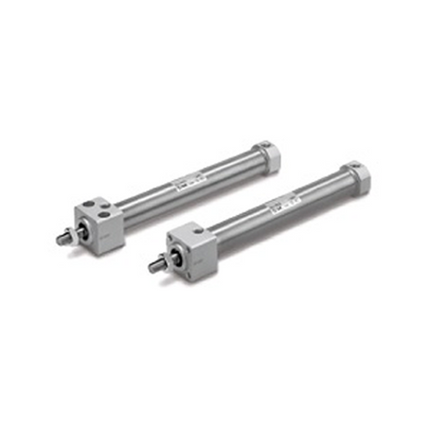

SMC CM2R-Z Series Air Cylinder, round body, Direct Mounting, Double Acting, Single Rod, CDM2RB32-150Z

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, set rocking support bracket for trunnion
  • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
  •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
form - pneumatic type
Mounting support type B Front installation type
tube inner diameter 32 Bore size 32mm
cylinder stroke 150 Cylinder stroke 150mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
cushion - rubber cushion
Rod end screw shape - rod end male thread
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2RB32-150Z

$82.32 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Standardized rod end shape female thread
      • Improved auto switch operability, easy position adjustment
      • Single clevis, set rocking support bracket for trunnion
      • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
      •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      form - pneumatic type
      Mounting support type B Front installation type
      tube inner diameter 32 Bore size 32mm
      cylinder stroke 150 Cylinder stroke 150mm
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      cushion - rubber cushion
      Rod end screw shape - rod end male thread
      rod end bracket - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
