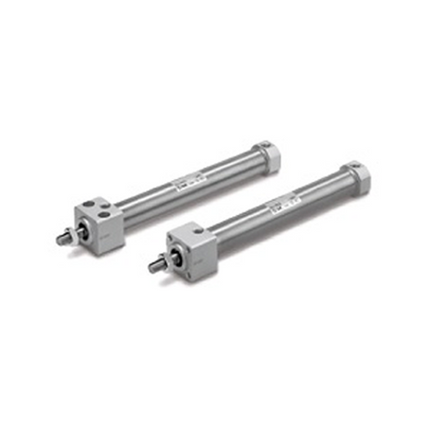

SMC CM2R-Z Series Air Cylinder, round body, Direct Mounting, Double Acting, Single Rod, CM2RA25-100Z

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, set rocking support bracket for trunnion
  • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
  •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch - Without auto switch
form - pneumatic type
Mounting support type A Bottom installation type
tube inner diameter 25 tube inner diameter 25mm
cylinder stroke 100 cylinder stroke 100mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
cushion - rubber cushion
Rod end screw shape - rod end male thread
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CM2RA25-100Z

$56.17 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 08, 2024 17:00:00 +0900

    Description

    OVERVIEW


    • Standardized rod end shape female thread
    • Improved auto switch operability, easy position adjustment
    • Single clevis, set rocking support bracket for trunnion
    • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
    •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



    Specification item model symbol Specification information
    With auto switch - Without auto switch
    form - pneumatic type
    Mounting support type A Bottom installation type
    tube inner diameter 25 tube inner diameter 25mm
    cylinder stroke 100 cylinder stroke 100mm
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    cushion - rubber cushion
    Rod end screw shape - rod end male thread
    rod end bracket - no metal fittings
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
