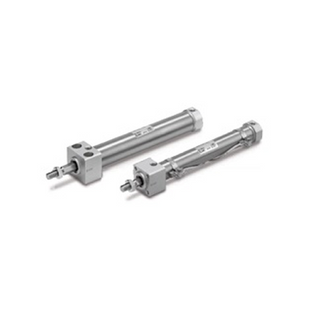

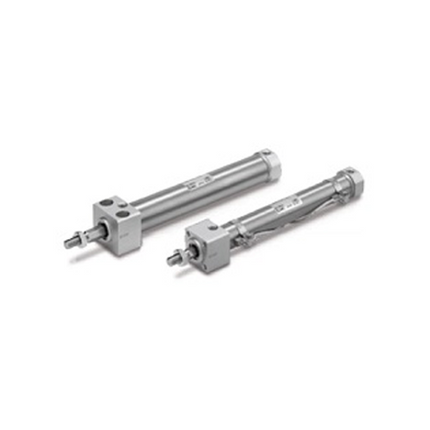

Name: SMC CM2RK-Z Series Air Cylinder, round body, Direct Mount, Non-Rot, CDM2RKA20-125Z
Brand: SMC
SKU: CDM2RKA20-125Z
Price: 52.68 USD
Availability: InStock

SMC CM2RK-Z Series Air Cylinder, round body, Direct Mount, Non-Rot, CDM2RKA20-125Z

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, swing support bracket for trunnion set
Rod end bracket, swing bracket attachment part number set (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	A	Bottom installation type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	125	Cylinder stroke 125mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Rod end screw shape	-	rod end male thread
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2RKA20-125Z

Bore	20mm
Stroke	125mm
Auto switch	Without auto switch
Port size	1/8
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Port thread	Rc
Rod end male thread	M8X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Weight	253 g

Specification values above are for model code CDM2RKA20-125Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
