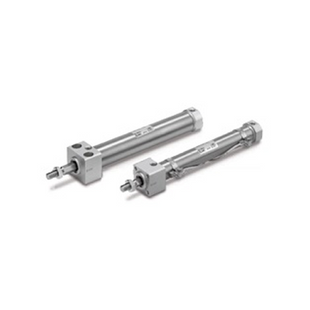

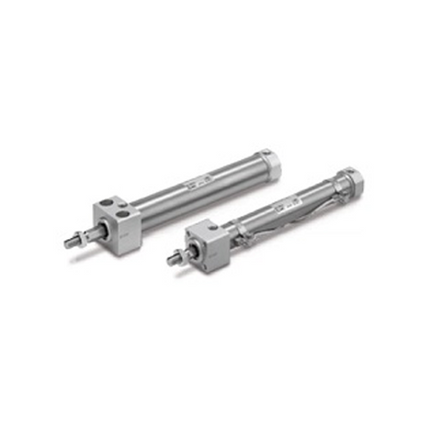

Name: SMC CM2RK-Z Series Air Cylinder, round body, Direct Mount, Non-Rot, CDM2RKB32-300Z
Brand: SMC
SKU: CDM2RKB32-300Z
Price: 64.56 USD
Availability: InStock

SMC CM2RK-Z Series Air Cylinder, round body, Direct Mount, Non-Rot, CDM2RKB32-300Z

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, swing support bracket for trunnion set
Rod end bracket, swing bracket attachment part number set (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Front installation type
tube inner diameter	32	Bore size 32mm
cylinder stroke	300	Cylinder stroke 300mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Rod end screw shape	-	rod end male thread
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2RKB32-300Z

Bore	32mm
Stroke	300mm
Auto switch	Without auto switch
Port size	1/8
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Port thread	Rc
Rod end male thread	M10X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Weight	785 g

Specification values above are for model code CDM2RKB32-300Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
