Description

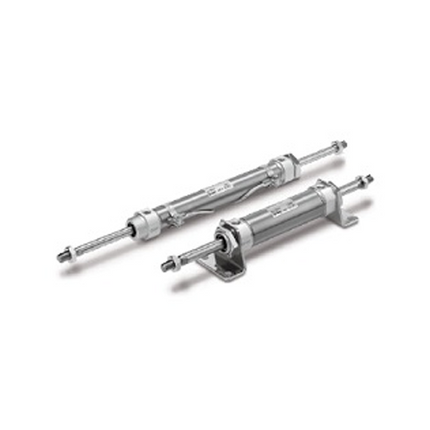

SMC CDM2WB25-50AZ — CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod. This code specifies 25mm bore, 50mm stroke, without auto switch.
Specification — CDM2WB25-50AZ
| Bore |
25mm |
| Port thread |
Rc |
| Stroke |
50mm |
| Cushion |
Air cushion |
| Auto switch |
Without auto switch |
| Weight |
314 g |
Specification values above are for model code CDM2WB25-50AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CM2W-Z series
- Standardized rod end shape female thread
- Improved auto switch operability, easy position adjustment
- Single clevis, set rocking support bracket for trunnion
- Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
- With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
