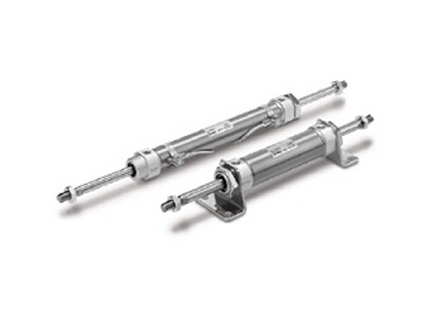

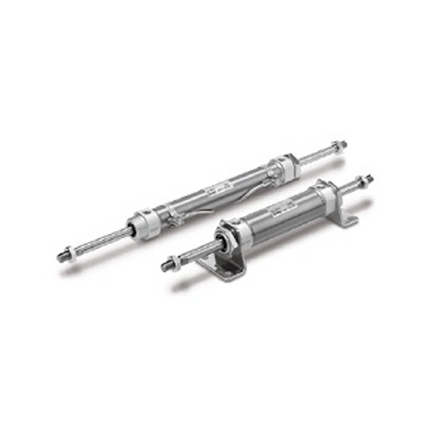

Name: SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB32-50AZ
Brand: SMC
SKU: CDM2WB32-50AZ
Price: 60.86 USD
Availability: InStock

SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB32-50AZ

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	50	cylinder stroke 50mm
cushion	A	air cushion
Rod end screw shape	-	rod end male thread
with bellows	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2WB32-50AZ

Bore	32mm
Port thread	Rc
Stroke	50mm
Cushion	Air cushion
Auto switch	Without auto switch
Weight	455 g

Specification values above are for model code CDM2WB32-50AZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
