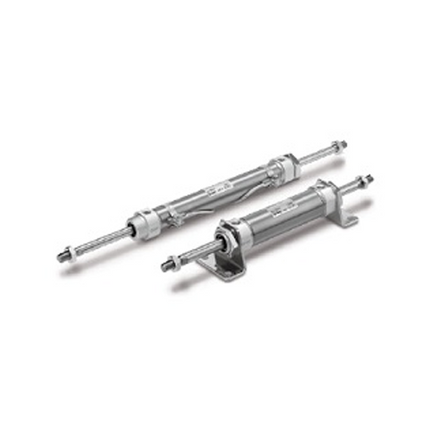

Name: SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB40-25Z
Brand: SMC
SKU: CDM2WB40-25Z
Price: 56.4 USD
Availability: InStock

SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB40-25Z

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
cylinder stroke	25	cylinder stroke 25mm
cushion	-	rubber cushion
Rod end screw shape	-	rod end male thread
with bellows	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2WB40-25Z

Bore	40mm
Port thread	Rc
Stroke	25mm
Cushion	Rubber bumper
Auto switch	Without auto switch
Weight	751 g

Specification values above are for model code CDM2WB40-25Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2WB40-25Z

$56.40 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
form	-	pneumatic type
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
cylinder stroke	25	cylinder stroke 25mm
cushion	-	rubber cushion
Rod end screw shape	-	rod end male thread
with bellows	-	doesn't exist
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDM2WB40-25Z

Bore	40mm
Port thread	Rc
Stroke	25mm
Cushion	Rubber bumper
Auto switch	Without auto switch
Weight	751 g

Specification values above are for model code CDM2WB40-25Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
