Description

OVERVIEW

CP96, profile design ISO cylinder with enclosed tie rods, is available in 6 bore sizes from ø32 to ø125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	D	Without auto switch Built-in magnet cylinder
installation support	B	Basic type
tube inner diameter	100	Tube inner diameter 100mm
cylinder stroke	25	cylinder stroke 25mm
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW CP96, profile design ISO cylinder with enclosed tie rods, is available in 6 bore sizes from ø32 to ø125mm. ... Read more

SKU: CP96SDB100-25C

$188.68 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

CP96, profile design ISO cylinder with enclosed tie rods, is available in 6 bore sizes from ø32 to ø125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	D	Without auto switch Built-in magnet cylinder
installation support	B	Basic type
tube inner diameter	100	Tube inner diameter 100mm
cylinder stroke	25	cylinder stroke 25mm
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

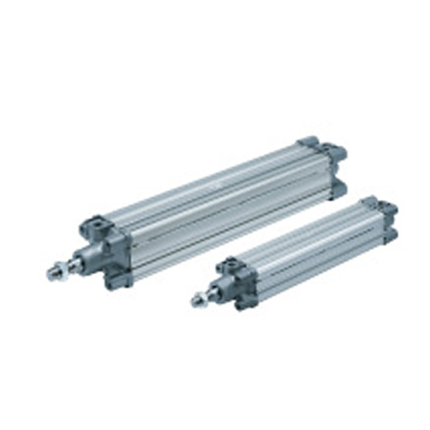

Name: SMC CP96 Series ISO air cylinder, double acting, single rod, CP96SDB100-25C
Brand: SMC
SKU: CP96SDB100-25C
Price: 188.68 USD
Availability: InStock

SMC CP96 Series ISO air cylinder, double acting, single rod, CP96SDB100-25C
