Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
how it works	T	single acting retract
body options	-	Standard (rod end female thread)
Auto switch mounting groove	Z	ø12-ø25 2 sides / ø32-ø50 4 sides
Installation bolts included	-	no mounting bolt
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CQ2B32-10TZ

$32.45 Excl. VAT

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
how it works	T	single acting retract
body options	-	Standard (rod end female thread)
Auto switch mounting groove	Z	ø12-ø25 2 sides / ø32-ø50 4 sides
Installation bolts included	-	no mounting bolt
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

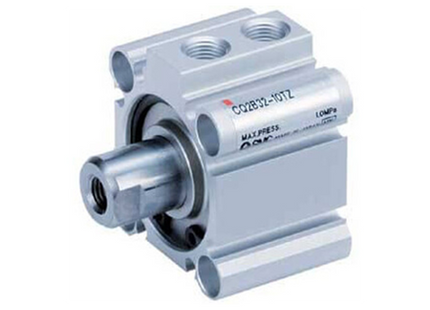

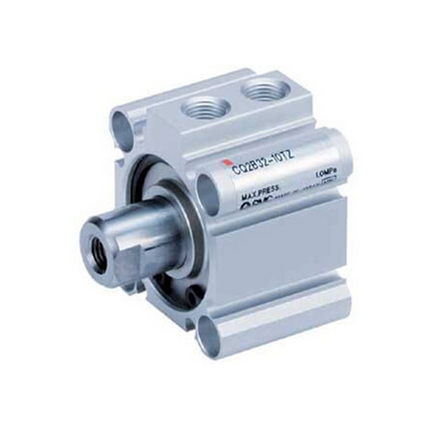

Name: SMC CQ2-Z Series Compact Cylinder, Single Acting, Single Rod, CQ2B32-10TZ
Brand: SMC
SKU: CQ2B32-10TZ
Price: 32.45 USD
