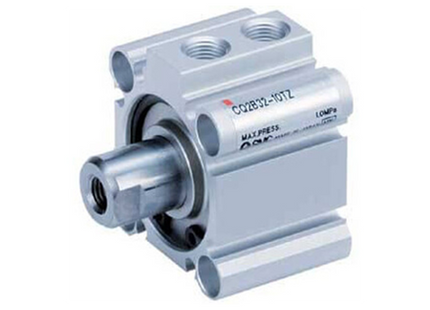

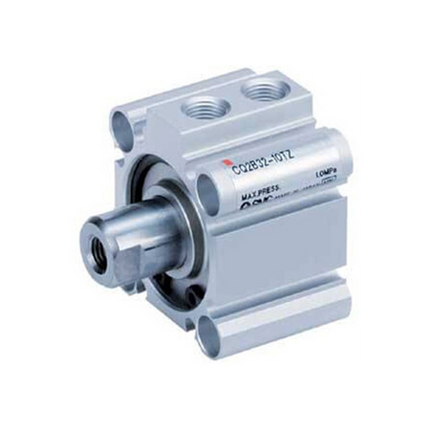

SMC CQ2L12-10SM — CQ2-Z Series Compact Cylinder, Single Acting, Single Rod. This code specifies 12mm bore, 10mm stroke, single acting, no built-in magnet, without auto switch.
Specification — CQ2L12-10SM
| Magnet |
No built-in magnet |
| Bore |
12mm |
| Stroke |
10mm |
| Body option |
Rod end male thread |
| Auto switch |
Without auto switch |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Rod end male thread |
M5X0.8 |
| Min. operating pressure |
0.25 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
70 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
70 °C |
| Weight |
92 g |
Specification values above are for model code CQ2L12-10SM as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQ2-Z series
- A space-saving cylinder designed with a thin overall length to realize compact equipment
- Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
- There is no protruding auto switch.
- Light weight: reduced by 5~13% (compared to the previous CQ2)
- Newly added support bracket for double clevis and compact foot type bracket
- Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
