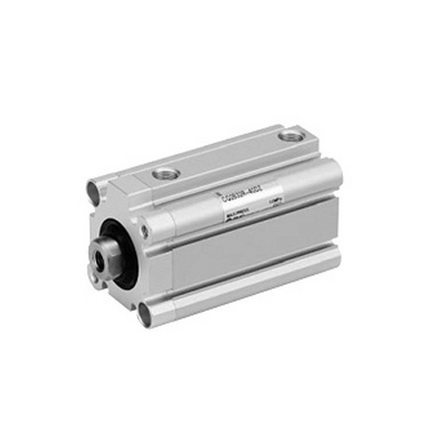

SMC CDQ2AS32-20DCMZ — CQ2-Z Series Lateral Load Resistant Thin Type Cylinder. This code specifies 32mm bore, 20mm stroke, double acting, single rod, built-in magnet, without auto switch.
Specification — CDQ2AS32-20DCMZ
| Magnet |
Built-in magnet |
| Mounting |
Both ends tapped |
| Bore |
32mm |
| Port thread |
Rc |
| Stroke |
20mm |
| Body option |
Standard |
| Switch mounting groove |
4 surfaces |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Cushion |
Rubber bumper |
| Rod end male thread |
M14X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Weight |
299 g |
Specification values above are for model code CDQ2AS32-20DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQ2-Z series
- A space-saving cylinder designed with a thin overall length to realize compact equipment
- Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
- There is no protruding auto switch.
- Light weight: reduced by 5~13% (compared to the previous CQ2)
- Newly added support bracket for double clevis and compact foot type bracket
- Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
