Description

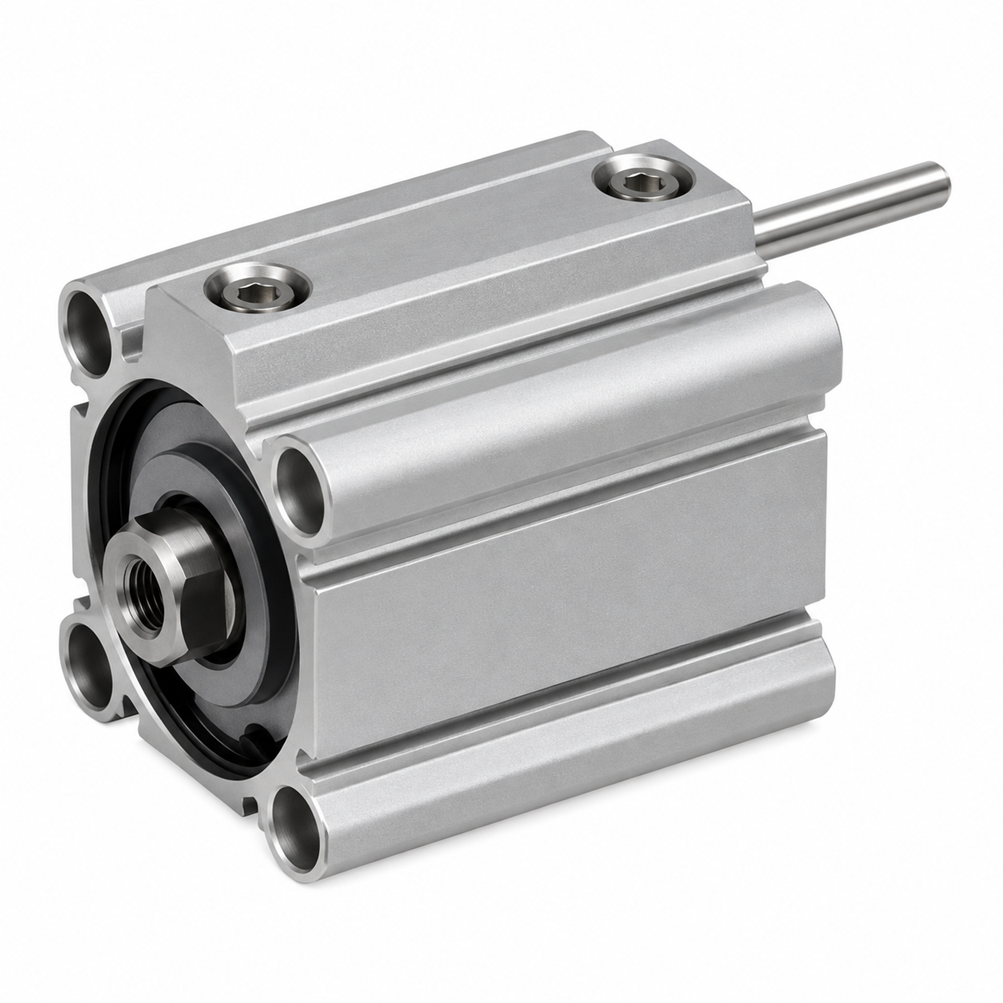

SMC CQ2A25-25D — CQ2 Z series compact cylinder, ø25 bore with 25 mm stroke, double acting single rod. The whole body is short for its bore, which is what makes it fit stations where a tie-rod cylinder cannot.
Specification — CQ2A25-25D
| Series |
CQ2 Z (compact cylinder, standard type) |
| Bore |
ø25 mm |
| Stroke |
25 mm |
| Action |
Double acting, single rod |
| Mounting |
A — both ends tapped |
| Magnet |
None (CDQ2 prefix for auto switch versions) |
| Fluid |
Air |
| Product weight |
150 g |
About the CQ2 Z series
- Lineup from ø4 to ø200, with ø4, ø6 and ø10 recently added
- 5 to 13% lighter than the previous CQ2 generation
- Auto switches mount on four faces (two faces on ø12 to ø25) and sit flush, with no projection outside the body
- Double clevis brackets and a compact foot bracket are available
- Part numbers with mounting bolts included and with a rod end fitting fitted, which saves ordering them separately
- Magnet-equipped versions carry the CDQ2 prefix (CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2□S, CDBQ2)
Typical use
Clamping, stoppers, lifting jigs, part ejection and any station where panel depth is tight and a standard cylinder will not fit.
Ordering
Order by the full code CQ2A25-25D. The bore and stroke come first, then the mounting letter, then the rod end and option codes — a single character changes the part. This code has no built-in magnet; if you need auto switch mounting, order the CDQ2 equivalent. Need another bore, stroke or mounting style? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
