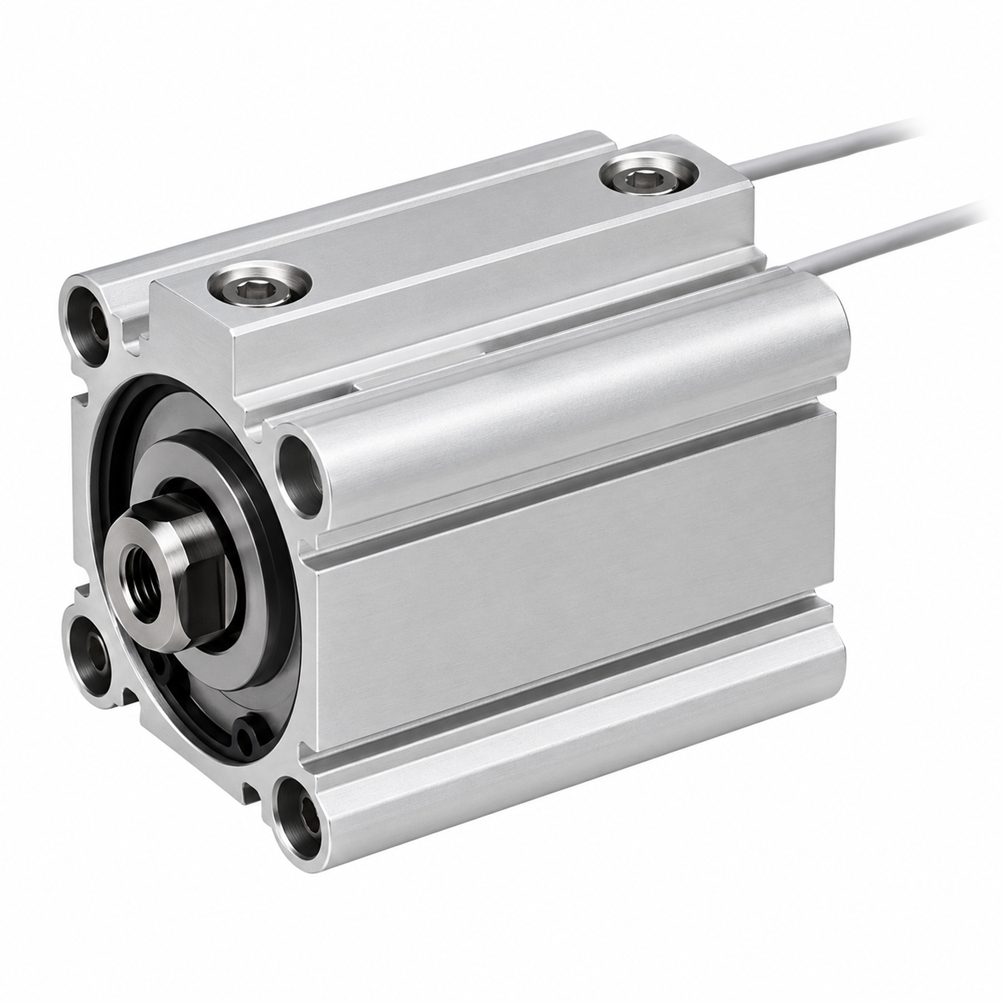

SMC CQ2A32-50DCMZ — CQ2 Z series compact cylinder, ø32 bore with 50 mm stroke, double acting single rod. Tapped at both ends with a male rod thread and rubber bumpers fitted at the stroke ends.
Specification — CQ2A32-50DCMZ
| Series |
CQ2 Z (compact cylinder, standard type) |
| Bore |
ø32 mm |
| Stroke |
50 mm |
| Action |
Double acting, single rod |
| Mounting |
A — both ends tapped |
| Rod end / cushion |
CM — rubber bumper, male rod thread |
| Switch groove |
Z — 4 surfaces (ø32 to ø100) |
| Product weight |
349 g |
Why the rubber bumper version
A compact cylinder has no air cushion, so at speed the piston meets the end cover hard. Rubber bumpers absorb that impact, which cuts the knock heard at each stroke end and extends the life of the cylinder. On clamping and stopper work, where the cylinder hits its end every cycle, the bumper version is usually worth the small extra cost.
About the CQ2 Z series
- Lineup from ø4 to ø200, with ø4, ø6 and ø10 recently added
- 5 to 13% lighter than the previous CQ2 generation
- Auto switches mount on four faces at this bore and sit flush, with no projection outside the body
- Double clevis brackets and a compact foot bracket are available
- Magnet-equipped versions carry the CDQ2 prefix
Ordering
Order by the full code CQ2A32-50DCMZ. Bore, stroke, mounting, cushion and rod end are all in the code — a single character changes the part. The plain version without bumpers is CQ2A32-50DZ.
