Description

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

Double acting, single rod, compact cylinder
Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard stroke range *: 5 to 100
Port threads: M *; Rc, NPT or G *
Auto switch capable

SPECIFICATIONS

Compact Cylinder Type	Standard
Bore Diameter	50 mm
Stroke	75 mm
Piston Action	Double-Acting
Mounting Type	Both Ends Tapped
Rod Type	Single Rod
Cushion Type	Rubber Bumper
Options	With rubber bumper
Cylinder Series	CQ2
Port Thread Standard	BSPT
Rod Gender	Female

Product form

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches... Read more

SKU: CQ2A50-75DCZ

$67.90 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Jan 07, 2026 17:00:00 +0900

Description

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

Double acting, single rod, compact cylinder
Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard stroke range *: 5 to 100
Port threads: M *; Rc, NPT or G *
Auto switch capable

SPECIFICATIONS

Compact Cylinder Type	Standard
Bore Diameter	50 mm
Stroke	75 mm
Piston Action	Double-Acting
Mounting Type	Both Ends Tapped
Rod Type	Single Rod
Cushion Type	Rubber Bumper
Options	With rubber bumper
Cylinder Series	CQ2
Port Thread Standard	BSPT
Rod Gender	Female

Reviews

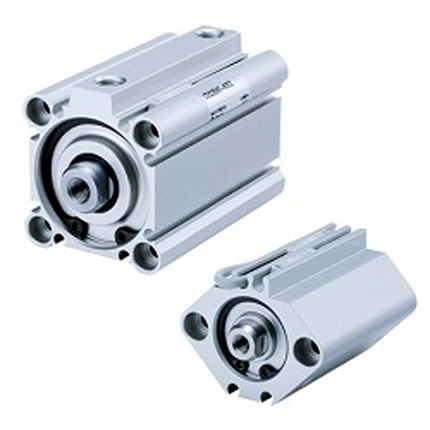

Name: SMC CQ2A50-75DCZ CQ2-Z COMPACT CYLINDER with 50 mm Bore Size
