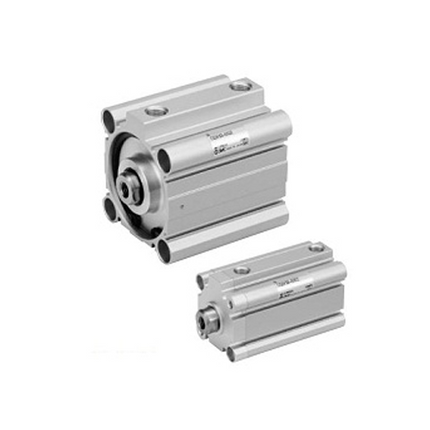

Name: SMC CQ2K-Z Series, Non-Rotating Rod Type. Double Acting , Single Rod, CDQ2KB16-10DMZ
Brand: SMC
SKU: CDQ2KB16-10DMZ
Price: 35.58 USD
Availability: InStock

SMC CQ2K-Z Series, Non-Rotating Rod Type. Double Acting , Single Rod, CDQ2KB16-10DMZ

VendorSMC

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	16	tube inner diameter 16mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
body options	M	rod end male thread
Auto switch mounting groove	Z	ø12-ø25 2 sides / ø32-ø63 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQ2KB16-10DMZ

Magnet	Built-in magnet
Mounting	Through hole (standard)
Bore	16mm
Stroke	10mm
Body option	Rod end male thread
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, single rod
Rod end male thread	M6X1.0
Min. operating pressure	0.07 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Weight	87 g

Specification values above are for model code CDQ2KB16-10DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
