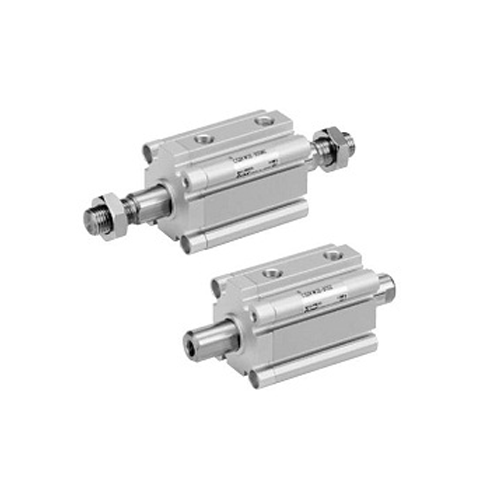

Name: SMC CQ2KW-Z Series, non rot, Double Acting, Double Rod, CDQ2KWB25-25DZ
Brand: SMC
SKU: CDQ2KWB25-25DZ
Price: 56.75 USD
Availability: InStock

SMC CQ2KW-Z Series, non rot, Double Acting, Double Rod, CDQ2KWB25-25DZ

VendorSMC

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	ø32-ø100 through hole (standard); ø20, ø25 through hole and both ends tapped (standard)
tube inner diameter	63	Bore size 63mm
Types of port screws	-	Rc/M screw
cylinder stroke	50	cylinder stroke 50mm
body options	CM	With rubber cushion, rod end male thread
Lock position	R	Rod side lock
Format of manual release	N	Non-lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQ2KWB25-25DZ

Magnet	Built-in magnet
Mounting	Through hole (standard)
Bore	25mm
Stroke	25mm
Body option	Standard (rod end female thread)
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Rod end female thread	M5X0.8
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Weight	275 g

Specification values above are for model code CDQ2KWB25-25DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
