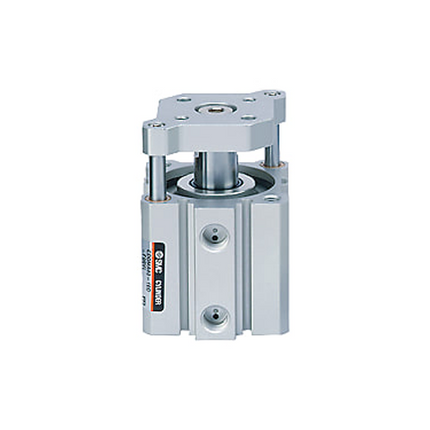

SMC CQM Series Compact Guide Rod Cylinder, CDQMB12-15-A93L

Description

OVERVIEW


  • Built-in guide rod in thin cylinder CQS, CQ2 series
  • Anti-rotation accuracy ±0.2° or less
  • Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
  • Direct mounting of load is possible
  • Mounting dimensions for CQS, CQ2 series Compatible with
  • With auto switch (CDQM series: CDQM)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Through hole (standard)
tube inner diameter 12 tube inner diameter 12mm
Types of port screws - M screw, Rc
cylinder stroke 15 cylinder stroke 15mm
auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without

Specification — CDQMB12-15-A93L

Mounting Through hole (standard)
Bore 12mm
Stroke 15mm
Port size M5X0.8
Fluid Air
Action Double acting, single rod
Cushion Rubber bumper
Min. operating pressure 0.12 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Piston speed min 50 mm/s
Weight 126 g

Specification values above are for model code CDQMB12-15-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB12-15-A93L

$108.25 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Built-in guide rod in thin cylinder CQS, CQ2 series
    • Anti-rotation accuracy ±0.2° or less
    • Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
    • Direct mounting of load is possible
    • Mounting dimensions for CQS, CQ2 series Compatible with
    • With auto switch (CDQM series: CDQM)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support B Through hole (standard)
    tube inner diameter 12 tube inner diameter 12mm
    Types of port screws - M screw, Rc
    cylinder stroke 15 cylinder stroke 15mm
    auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
    Auto switch additional symbol - 2 with or without

    Specification — CDQMB12-15-A93L

    Mounting Through hole (standard)
    Bore 12mm
    Stroke 15mm
    Port size M5X0.8
    Fluid Air
    Action Double acting, single rod
    Cushion Rubber bumper
    Min. operating pressure 0.12 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Fluid temp. min -10 °C
    Fluid temp. max 60 °C
    Ambient temp. min -10 °C
    Ambient temp. max 60 °C
    Piston speed min 50 mm/s
    Weight 126 g

    Specification values above are for model code CDQMB12-15-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
