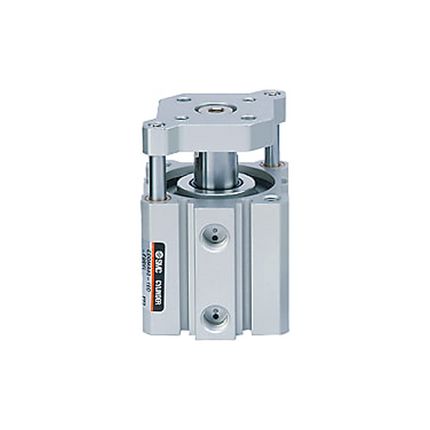

SMC CQM Series Compact Guide Rod Cylinder, CDQMB16-10-A93S

Description

OVERVIEW


  • Built-in guide rod in thin cylinder CQS, CQ2 series
  • Anti-rotation accuracy ±0.2° or less
  • Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
  • Direct mounting of load is possible
  • Mounting dimensions for CQS, CQ2 series Compatible with
  • With auto switch (CDQM series: CDQM)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Through hole (standard)
tube inner diameter 16 tube inner diameter 16mm
Types of port screws - M screw, Rc
cylinder stroke 10 cylinder stroke 10mm
auto switch A93 Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol S 1 attached

Specification — CDQMB16-10-A93S

Mounting Through hole (standard)
Bore 16mm
Stroke 10mm
Port size M5X0.8
Fluid Air
Action Double acting, single rod
Cushion Rubber bumper
Min. operating pressure 0.12 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Piston speed min 50 mm/s
Weight 83 g

Specification values above are for model code CDQMB16-10-A93S as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
