Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw, Rc
cylinder stroke	40	cylinder stroke 40mm
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	S	1 attached

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB20-40-A93LS

$80.08 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw, Rc
cylinder stroke	40	cylinder stroke 40mm
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	S	1 attached

Reviews

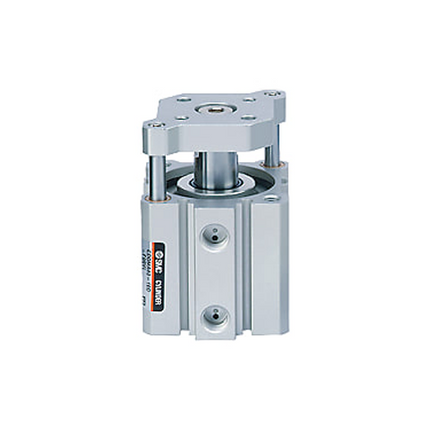

Name: SMC CQM Series Compact Guide Rod Cylinder, CDQMB20-40-A93LS
Brand: SMC
SKU: CDQMB20-40-A93LS
Price: 80.08 USD
Availability: InStock

SMC CQM Series Compact Guide Rod Cylinder, CDQMB20-40-A93LS
