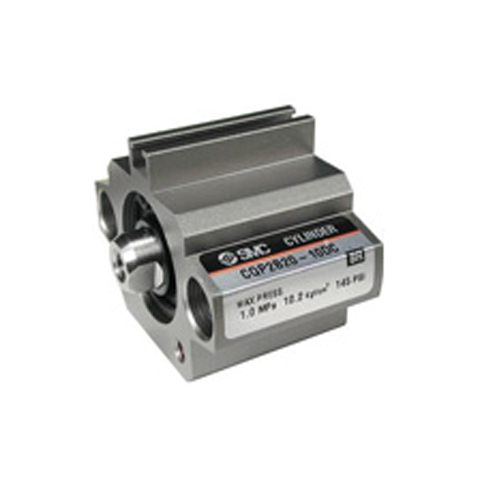

SMC CDQP2B32-100D — CQP2 Series Axial Piping, Double Acting, Single Rod. This code specifies 32mm bore, 100mm stroke, double acting, single rod, built-in magnet, without auto switch.
Specification — CDQP2B32-100D
| Magnet |
Built-in magnet |
| Bore |
32mm |
| Stroke |
100mm |
| Body option |
Standard (rod end female thread) |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Rod end female thread |
M8X1.25 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
679 g |
Specification values above are for model code CDQP2B32-100D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQP2 series
- A space-saving cylinder designed with a thin overall length to realize compact equipment
- Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
- There is no protruding auto switch.
- Light weight: reduced by 5~13% (compared to the previous CQ2)
- Newly added support bracket for double clevis and compact foot type bracket
- Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
