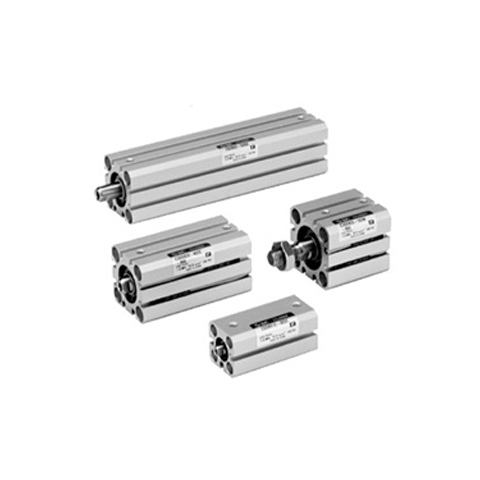

Name: SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSB20-40DM
Brand: SMC
SKU: CDQSB20-40DM
Price: 31.88 USD
Availability: InStock

SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSB20-40DM

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
Newly added support bracket for double clevis and compact foot type bracket.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	40	cylinder stroke 40mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
option	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSB20-40DM

Magnet	Built-in magnet
Mounting	Basic
Bore	20mm
Stroke	40mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Weight	194 g

Specification values above are for model code CDQSB20-40DM as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
