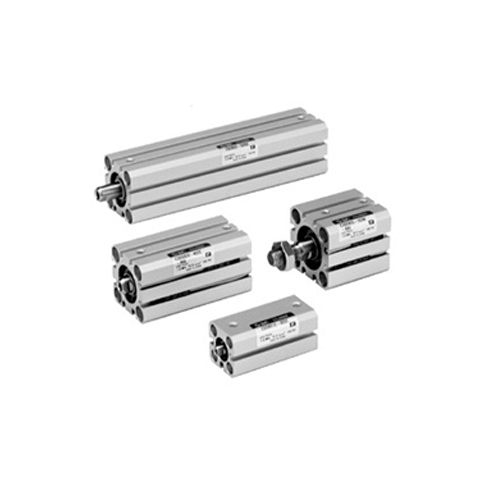

Name: SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSD20-50DCM-M9BL
Brand: SMC
SKU: CDQSD20-50DCM-M9BL
Price: 114.19 USD
Availability: InStock

SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSD20-50DCM-M9BL

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
Newly added support bracket for double clevis and compact foot type bracket.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	D	Double clevis type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	50	cylinder stroke 50mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
option	CM	With rubber cushion, rod end male thread
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSD20-50DCM-M9BL

Magnet	Built-in magnet
Bore	20mm
Stroke	50mm
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Allowable kinetic energy	0.11 J
Weight	381 g

Specification values above are for model code CDQSD20-50DCM-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
