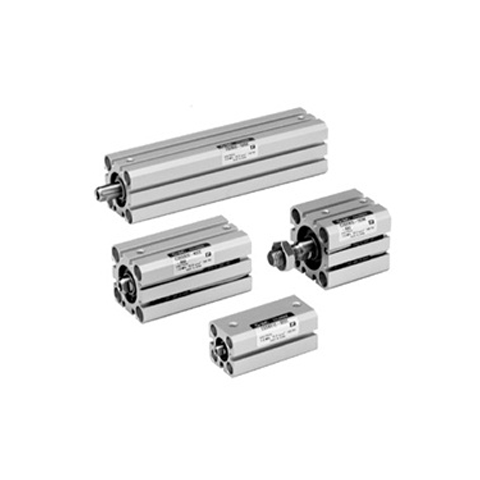

Name: SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSF20-75DCM-A93L
Brand: SMC
SKU: CDQSF20-75DCM-A93L
Price: 97.87 USD
Availability: InStock

SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSF20-75DCM-A93L

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
Newly added support bracket for double clevis and compact foot type bracket.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	F	Rod side flange type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	75	Cylinder stroke 75mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
option	CM	With rubber cushion, rod end male thread
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSF20-75DCM-A93L

Magnet	Built-in magnet
Mounting	Rod side flange
Bore	20mm
Stroke	75mm
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Weight	517 g

Specification values above are for model code CDQSF20-75DCM-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
