Name: SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSL16-75DC
Brand: SMC
SKU: CDQSL16-75DC
Price: 40.04 USD
Availability: InStock

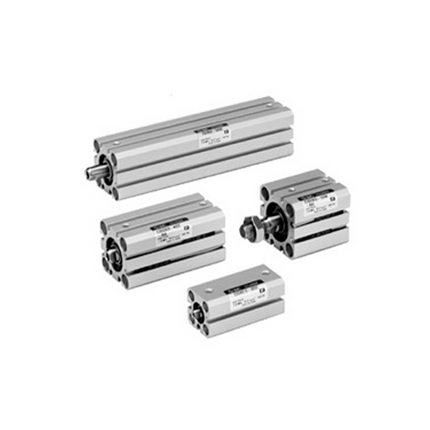

SMC CQS Series, Compact Type Cylinder, Double Acting, Single Rod, CDQSL16-75DC

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
Newly added support bracket for double clevis and compact foot type bracket.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	L	foot type
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	75	Cylinder stroke 75mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
option	C	With rubber bumper (for long stroke: standard)
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSL16-75DC

Magnet	Built-in magnet
Bore	16mm
Stroke	75mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Min. operating pressure	0.07 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Weight	286 g

Specification values above are for model code CDQSL16-75DC as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
