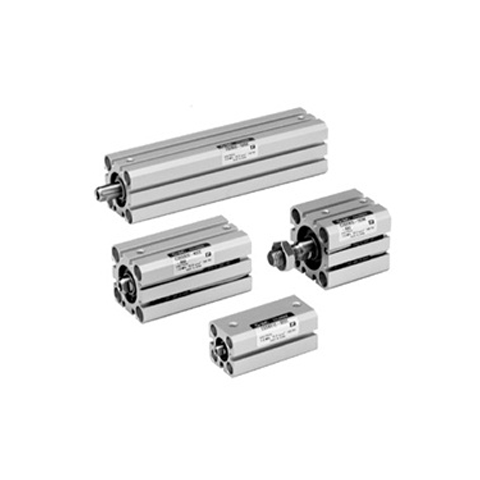

SMC CDQSL16-75DC-A93 — CQS Series, Compact Type Cylinder, Double Acting, Single Rod. This code specifies 16mm bore, 75mm stroke, double acting, built-in magnet.
Specification — CDQSL16-75DC-A93
| Magnet |
Built-in magnet |
| Bore |
16mm |
| Stroke |
75mm |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Port thread |
M |
| Min. operating pressure |
0.07 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
298 g |
Specification values above are for model code CDQSL16-75DC-A93 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQS series
- Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
- Compact cylinder that does not protrude from the main body when auto switch is attached.
- Newly added support bracket for double clevis and compact foot type bracket.
- With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
