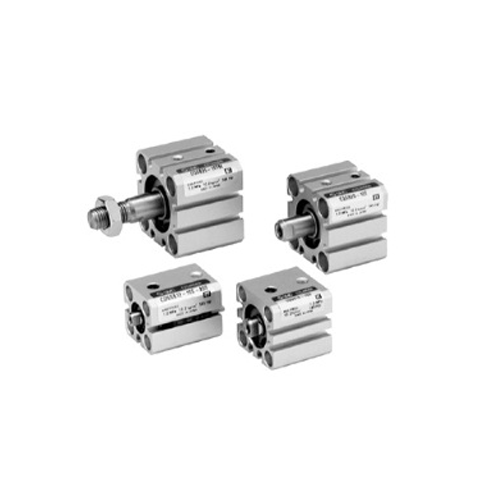

SMC CQS Series, Compact Type Cylinder, non rot, Single Acting, Double Rod, CDQSB16-5S

Description

OVERVIEW


  • Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
  • Compact cylinder that does not protrude from the main body when auto switch is attached.
  • Newly added support bracket for double clevis and compact foot type bracket.
  • With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)



Specification item model symbol Specification information
built-in magnet D built-in magnet
installation support B Through-hole/double-end tap common (standard)
tube inner diameter 16 tube inner diameter 16mm
cylinder stroke 5 cylinder stroke 5mm
how it works S Dandong: Forward
option - Standard (rod end female thread)
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Specification — CDQSB16-5S

Magnet Built-in magnet
Bore 16mm
Stroke 5mm
Auto switch Without auto switch
Port size M5X0.8
Fluid Air
Port thread M
Min. operating pressure 0.25 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Rod end female thread M4X0.7
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Weight 49 g

Specification values above are for model code CDQSB16-5S as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides Compact cylinder that... Read more

SKU: CDQSB16-5S

$21.51 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
    • Compact cylinder that does not protrude from the main body when auto switch is attached.
    • Newly added support bracket for double clevis and compact foot type bracket.
    • With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)



    Specification item model symbol Specification information
    built-in magnet D built-in magnet
    installation support B Through-hole/double-end tap common (standard)
    tube inner diameter 16 tube inner diameter 16mm
    cylinder stroke 5 cylinder stroke 5mm
    how it works S Dandong: Forward
    option - Standard (rod end female thread)
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard

    Specification — CDQSB16-5S

    Magnet Built-in magnet
    Bore 16mm
    Stroke 5mm
    Auto switch Without auto switch
    Port size M5X0.8
    Fluid Air
    Port thread M
    Min. operating pressure 0.25 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Rod end female thread M4X0.7
    Fluid temp. min -10 °C
    Fluid temp. max 60 °C
    Ambient temp. min -10 °C
    Ambient temp. max 60 °C
    Weight 49 g

    Specification values above are for model code CDQSB16-5S as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
