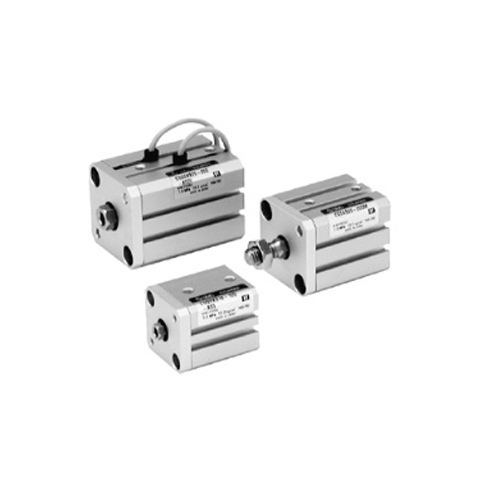

Name: SMC CQSK Series, Compact Type Cylinder, non rot, Double Acting, Single Rod, CDQSKB20-20D
Brand: SMC
SKU: CDQSKB20-20D
Price: 37.82 USD
Availability: InStock

SMC CQSK Series, Compact Type Cylinder, non rot, Double Acting, Single Rod, CDQSKB20-20D

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	20	cylinder stroke 20mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
option	-	Standard (rod end female thread)
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSKB20-20D

Magnet	Built-in magnet
Mounting	Basic
Bore	20mm
Stroke	20mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Rod end female thread	M5X0.8
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Weight	163 g

Specification values above are for model code CDQSKB20-20D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
