Name: SMC CQSW Series, Compact Type Cylinder, non rot, Double Acting, Double Rod, CDQSWB16-20DM
Brand: SMC
SKU: CDQSWB16-20DM
Price: 32.63 USD
Availability: InStock

SMC CQSW Series, Compact Type Cylinder, non rot, Double Acting, Double Rod, CDQSWB16-20DM

VendorSMC

Description

OVERVIEW

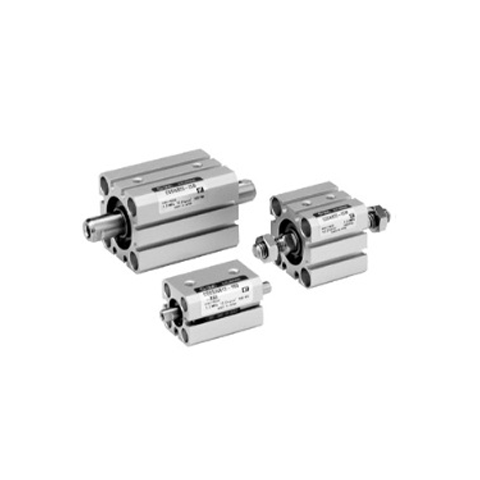

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through-hole/double-end tap common (standard)
tube inner diameter	16	tube inner diameter 16mm
cylinder stroke	20	cylinder stroke 20mm
option	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSWB16-20DM

Magnet	Built-in magnet
Bore	16mm
Stroke	20mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Rod end male thread	M6X1
Min. operating pressure	0.07 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Weight	101 g

Specification values above are for model code CDQSWB16-20DM as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
